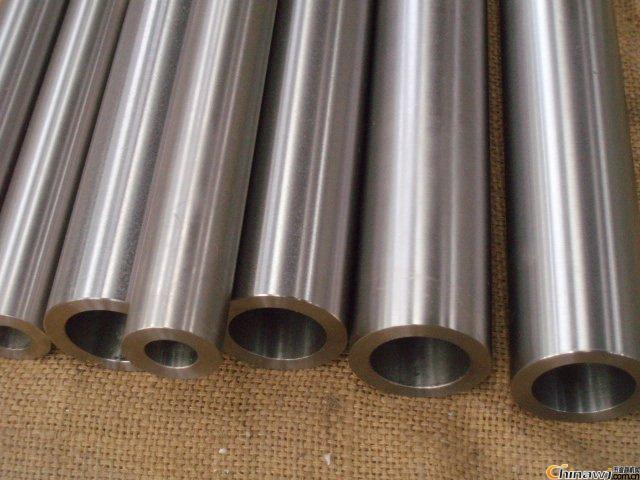

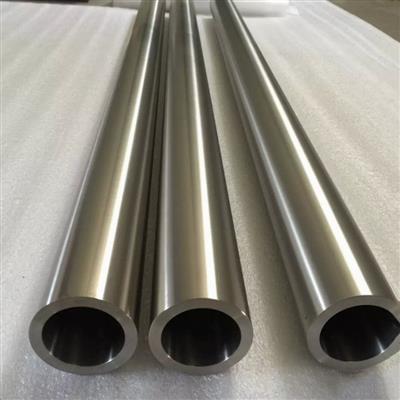

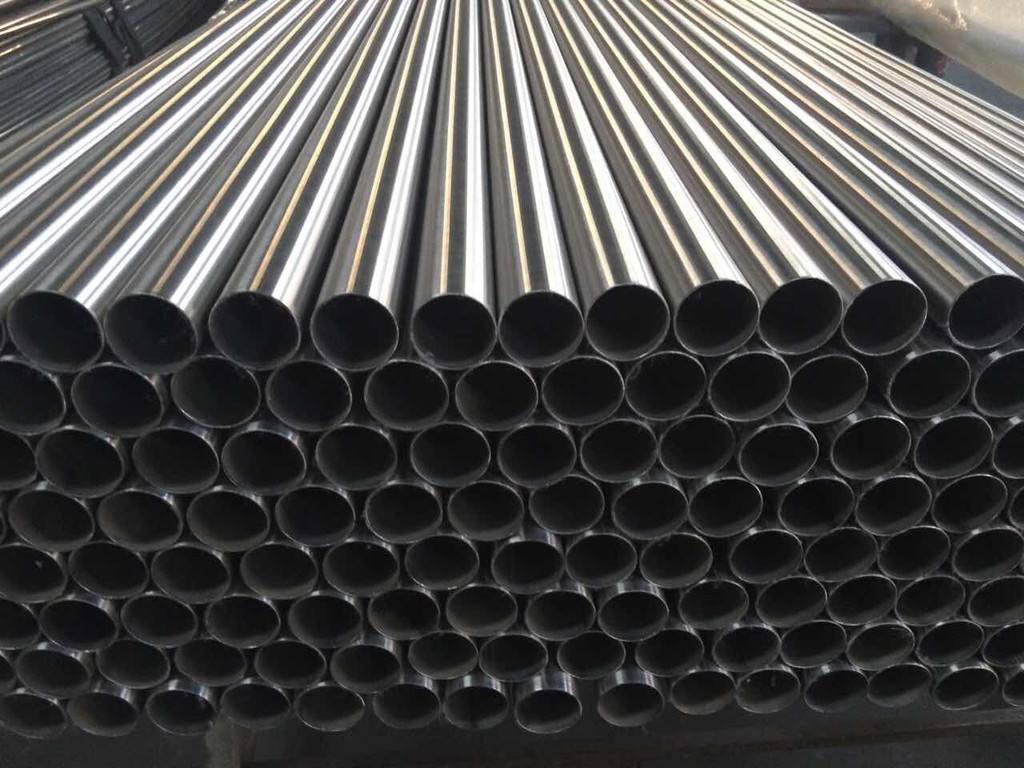

Hastelloy C-22 ASTM B474 UNS N06022 Alloy C-22 DIN 2.4602 EFW Welded Pipe
-
Type: Seamless, Welded
OD: 1/2"-48"
Thickness: SCH5-SCHXXS
Length: 0-12M, Customized
Process: Hot/Cold Rolled,Hot work,Cold drawn
ASTM B474 is the Standard Specifification for Electric Fusion Welded Nickel and Nickel Alloy Pipe.
Hastelloy C22 Pipe, Alloy C22 DIN 2.4602 Pipe, C22 welded pipe, Hastelloy C22 EFW Pipe, UNS N06022 Welded Pipe Exporter, C22 Hastelloy Pipe, Hastelloy WERKSTOFF NR. 2.4602 welded Pipe and Tube Manufacturer in China.
Hastelloy C-22 has exceptional resistance to a wide variety of chemical process environments, including strong oxidizers such as ferric and cupric chlorides, hot contaminated media (organic and inorganic), chlorine, formic and acetic acids, acetic anhydride, and seawater amd brine solutions.
Hastelloy C-22 resists the formation of grain boundary precipitates in
the weld heat affected zone, thus making it suitable for most chemical
process applications in the as-welded condition.
1. Hastelloy C22® welded Pipe
UNS: | N06022 |
Specifications: | ASTM B622, ASTM B619, ASTM B775, ASTM B516, ASTM B626, ASTM B751 |
International Specifications: | ISO 6207, din 17751 |
2. Hastelloy C-22 EFW Welded Pipe Specification
Specifications | ASTM B 474 |
Dimensions | ASTM, ASME and API |
Size | 15″NB TO 150″NB IN |
Specialized in | Large Diameter Size |
Schedule | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
Type | Seamless / ERW / Welded / Fabricated |
Form | Round, Hydraulic Etc |
Length | Single Random, Double Random & Cut Length. |
End | Plain End, Beveled End, Treaded |
3. About Hastelloy C-22 EFW Welded Pipe
C22 Hastelloy Alloy Pipes Chemical Composition
Hastelloy C22 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
Balance | 0.010 max | 12.5 – 14.5 | 0.50 max | 0.08 max | 2 – 6 | 0.02 max | 0.02 max | 2.5 max | 20 – 22.5 |
Hastelloy Alloy C22 Pipe Mechanical Properties
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
Equivalent Grades for C22 Hastelloy Pipe
STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
Hastelloy C22 | N06022 | 2.4602 | – | NiCr21Mo14W | NW 6022 | – | – |
4. Hastelloy C22 Pipe Price List
C22 hastelloy seamless pipes
US $2500-4100 / Ton (FOB Price)
seamless pipe astm b622 alloy C22
US $C22-1200 / Ton (FOB Price)
hastelloy seamless pipe C22
US $500-2000 / Ton (FOB Price)
ASTM B619 C22 hastelloy welded pipe
US $850-2200 / Metric Ton (FOB Price)
sb167 C22 seamless pipe
US $1.5-9 / Kilogram (FOB Price)
C22 seamless pipe manufacturer
US $850-2200 / Metric Ton (FOB Price)
ASTM B619 Gr.C22 Welded Pipe
US $500-1000 / Ton (FOB Price)
5. Hastelloy C22 Pipes Packaging
Hastelloy C22 welded Pipe may be furnished bare or coated and with capped ends. pipes up to 3” OD will be supplied in bundles. In order to prevent rust during sea shipment, bundles of Hastelloy C22 Seamless Pipe may be wrapped with polypropylene sheets, and secured with flat steel bands. Over 3” OD will be supplied loose.
ASME SB619 Hastelloy C22 Pipes Popular Searches
ERW Hastelloy C22 pipe, Fabricated Hastelloy C22 Pipe , CDW Hastelloy C22 Pipe, Hastelloy C22 Cold Drawn Seamless Pipe, marine Hastelloy C22 Piping, 10mm Hastelloy C22 Pipe, 40mm Hastelloy C22 Pipes, 12mm Hastelloy C22 Pipe, Hastelloy C22 pipe price, 4 inch C22 Hastelloy pipe price, Hastelloy C22 pipe price per foot, Alloy C22 pipe price, Alloy C22 pipe, Alloy C22 pipes, Alloy C22 pipes manufacturers, 3 inch Hastelloy C22 pipe, 8 inch Hastelloy C22 pipe, 1 inch C22 Hastelloy pipe, C22 Hastelloy pipe 2 inch, C22 Hastelloy 2 inch pipe, 2.5 inch Hastelloy C22 pipe, 12 inch Hastelloy C22 pipe, Hastelloy C22 pipe manufacturers, C22 Hastelloy Pipe manufacturers, C22 Hastelloy pipe manufacturers, C22 Hastelloy pipe, Alloy C22 pipe, C22 Alloy pipe, C22 Hastelloy welded pipe, C22 Hastelloy welded pipes, large diameter C22 Hastelloy pipe, large C22 Hastelloy pipe, thick wall C22 Hastelloy pipe, thin wall C22 Hastelloy pipe, C22 Hastelloy piping wall thickness
6. Why Choose Us
1. On-Time Delivery Every Time
2. Competitive Prices
3. High Quality Product
4. Quick Response by Email & by Phone
5. An ISO 9001:2008 Certified Company
7. Hastelloy C-22 EFW Welded Pipe FAQ:
Q:How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality controlling from the beginning to the end.Mill Test Certificate is
supplied with shipment. If needed, a Third Party Inspection is acceptable.
Q:May I have some samples before bulk order?
A:Yes, of course. samples are free but you have to pay the courier.
Q:Can we visit your Company?
A:Surely. Welcome to China and we will be honored to have a customer and friend.
Q:What is the payment terms?
A:T/T, L/C ,Western Union,etc.
Q:What's your delivery time?
A:For stocks, we can send the goods to loading port within 7 days after receiving your deposit.
For production period, it usually needs about 10days- 60days after receiving the deposit.
Q:Is it OK to mark my logo on your products?
A:Yes. OEM and ODM are available for us.
