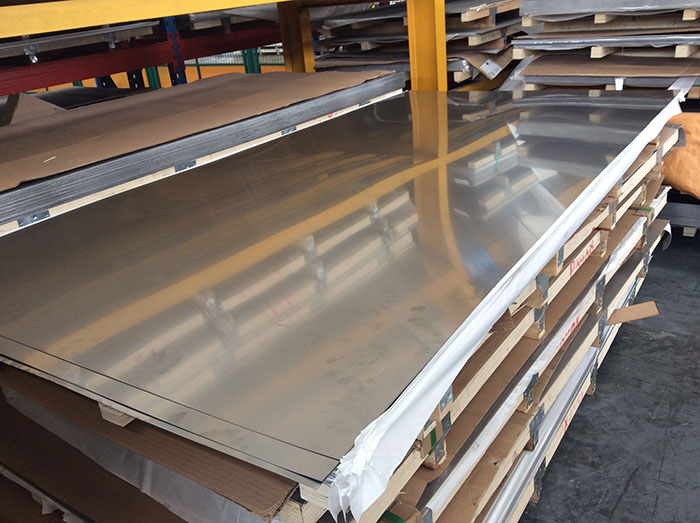

Incoloy 800 Sheet
-
800 Incoloy Polished Cold Drawn Plates, 800 Incoloy Plate Stockholder, Distributors Of ASME SB409 Incoloy 800 Coils, Incoloy GOST ЭИ670 Strips Stockist, Manufacturer.
Best price incoloy 800 1.4876 NO8800 plate Hot Rolled sheet coil
1.ASTM Specification Of Incoloy 800 Plate:
Alloy | Sheet/Plate |
| Alloy 800 (UNS N08800) | B409 |
| Alloy 800H (UNS N08810) | B409 |
| Alloy 800HT (UNS N08811) | B409 |
2.Incoloy800 (UNS NO8800/W.Nr.1.4876/X10NiCrAlTi3220) CHEMICAL COMPOSITION
| % | C | Mn | Si | S | P | Cu | B | Fe | ||||||||
| Min | Bal | |||||||||||||||
| Max | 0.01 | 1.5 | 1 | 0.015 | 0.75 | |||||||||||
| % | V | Mo | Nb | Cr | Ni | Al | Ti | |||||||||
| Min | 19 | 30 | 0.15 | 0.15 | ||||||||||||
| Max | 23 | 35 | 0.6 | 0.6 | ||||||||||||
3.Incoloy800 (UNS NO8800/W.Nr.1.4876/X10NiCrAlTi3220) Heat treatment
Bar,Hot rolled plate,cold rolled plate,seamless tube,cold rolled strip and forging:1000℃-1060℃,Air cool
4.Incoloy800 (UNS NO8800/W.Nr.1.4876/X10NiCrAlTi3220) MECHANICAL PROPERTIES
| Density | Melting | Heat treatment | Tensile strength | Yield strength | Elongation | Reduction of area | Brinell Hardness | |||||||||
| g/cm3 | ℃ | σb/MPa | σp0.2/MPa | σ5 /% | φ/ % | HBS | ||||||||||
| 7.94 | 1357 | Solution treatment | ≥480 | ≥170 | ≥35 | |||||||||||
| 1385 | ||||||||||||||||
Incoloy800 (UNS NO8800/W.Nr.1.4876/X10NiCrAlTi3220) Spec.NO.
BarForging:ASTM B164,ASTM B564
Coldrolled plate:ASTM B127
Tube:ASTM B163
5.Mechanical & Physical Properties :
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000, MPa – 520 | Psi – 30,000, MPa –205 | 30 % |
6.Specifications and Designations
| STANDARD | UNS | WERKSTOFF NR. | EN | AFNOR | JIS | GOST | BS | OR |
| Incoloy 800 | N08800 | 1.4876 | X10NiCrAlTi32-20 | Z8NC32-21 | NCF 800 | ЭИ670 | NA 15 | XH32T |
| Incoloy 800H | N08810 | 1.4958 / 1.4876 | X5NiCrAlTi31-20 | Z8NC33-21 | NCF 800H | ЭИ670 | NA 15(H) | XH32T |
| Incoloy 800HT | N08811 | 1.4859 / 1.4876 | X8NiCrAlTi32-21 | - | NCF 800HT | ЭИ670 | NA 15(HT) | XH32T |
Incoloy 800 Sheet has a high melting point of 1350°C (2460°F) which
makes it ideal for high-temperature applications. It has good mechanical
properties, including high tensile strength and good ductility,
allowing it to be formed and shaped easily even at high temperatures.
Incoloy 800 Sheet can withstand high-pressure environments and exhibits good resistance to creep and stress rupture. These properties make Incoloy 800 Sheet an ideal material for the construction of high-temperature heat exchangers, furnace components, and other high-temperature applications.
