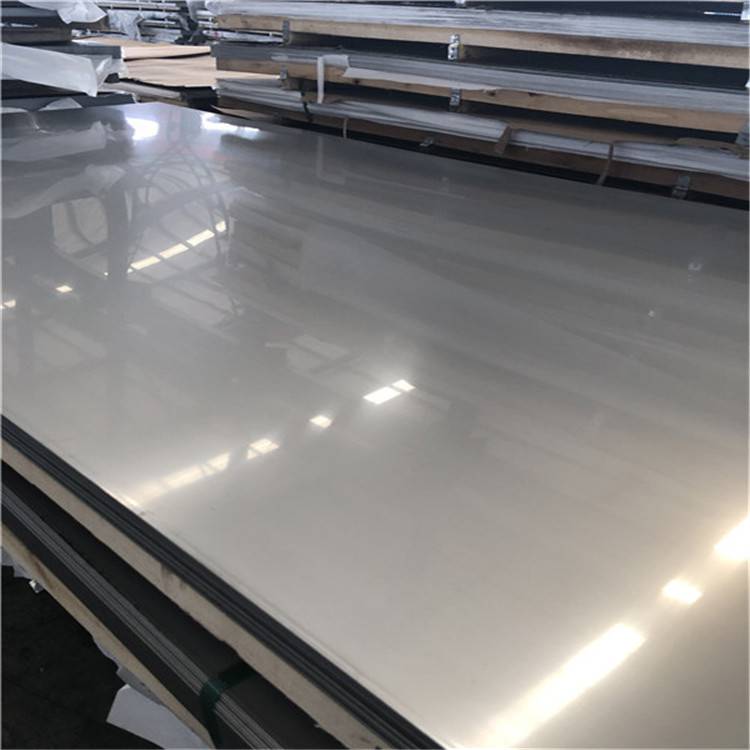

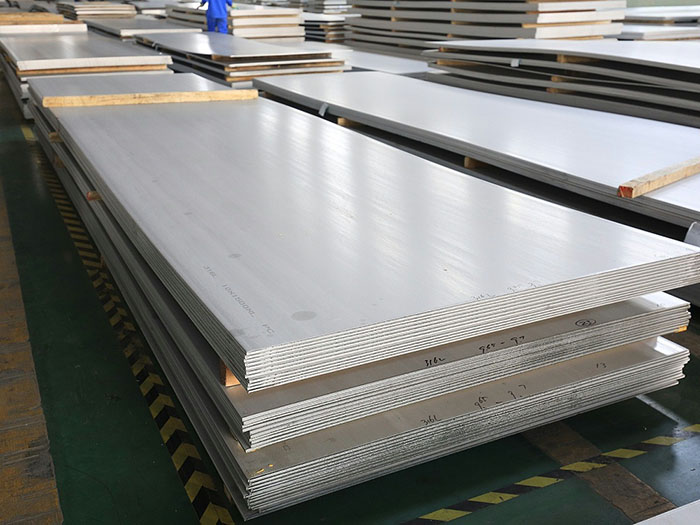

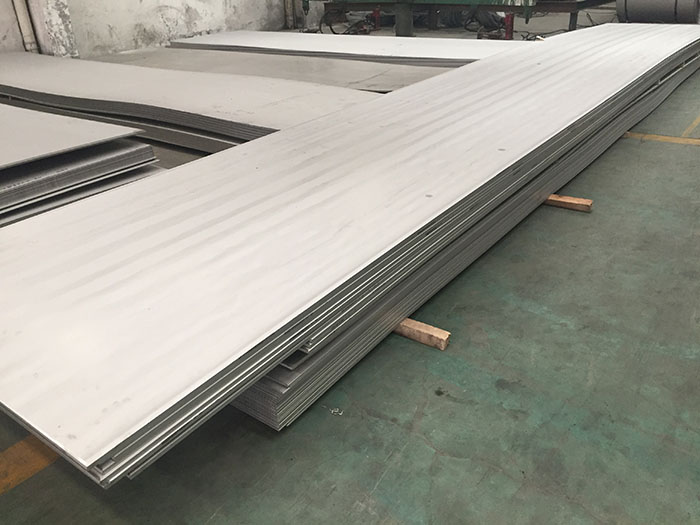

Duplex Steel 1.4507 Plate Sheet
-
Type: Plate, Sheet, Strip, Coil
Length: 0-12m
Width: 0-2500mm
Thickness: 0.3-1200mm
Process: Hot/Cold Rolled
Surface: 1,2D,2B BA,3,4,6,7
UNS S32550 1.4507 is a highly superduplex solid solution trengthened alloy, it contains both austenitic and ferritic crystal structures, which provides high strength and wear resistance while offering superior corrosion resistance compared to 316 stainless steel. UNS S32550 Duplex Steel Plate offers superior resistance to pitting and crevice corrosion, stress corrosion cracking, and corrosion fatigue. It's super because it is more alloyed than ordinary stainless steels and has superior corrosion resistance.
1.4507 UNS S32550 Equivalent Grade Designation
2507 Cu
ALLOY 255
DIN EN 1.4507
X2CrNiMoCuN25-6-3
FERRALIUM 255
ASTM A182 F61
Super Duplex stainless steel UNS S32550 Chemical Composition
Grade | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Ni | Cr | Mo | N | Cu | Fe |
UNS S32550 | 0.025 | 0.80-1.20 | 0.025 | 0.005 | 0.7 | 4.50-6.50 | 24.00-27.00 | 2.90-3.90 | 0.10-0.25 | 1.50-2.50 | Bal |
FERRALIUM 255 UNS S32550 Mechanical Properties
Yield 0.2 % ( ksi/Mpa), Min | Tensile (ksi/Mpa), Min | Elongation ( % in 50mm ), Min | Reduction in Area, % | Hardness (HB), Max |
550 | 750 | 25 | 55 | 290 |
ALLOY 255 UNS S32550 Physical Properties
Density ( Kg/m3 ) | Elastic Modulus ( Gpa ) | Co-eff of Expansion ( µm/m/°C | Thermal Condc. (W/m.K) | Electric Resistivity (nΩ.m) |
7850 | 200 | 14.5 | 19 | 850 |
1.4507 UNS S32550 Characteristics
Density 0.282 lb/in
Specific Gravity 7.81
Thermal Expansion
Coefficient (68° to 600°F) 6.7X10^-6 in/in/°F
Thermal Conductivity (68°F) 105 Btu/sqr ft/hr/°F/in
Electrical Resisitivity (68°F) 473 Ohms/cir mil ft
Dynamic Modulus of Elasticity 30.5x10^6 psi
One of the key advantages of UNS S32550 super duplex plate is its high resistance to pitting and crevice corrosion. This is due to its high content of chromium, molybdenum, and nitrogen, which help to form a protective oxide layer on the surface of the steel. This layer prevents the penetration of corrosive agents, such as saltwater or acidic liquids, which can cause serious damage to other types of steel.
In addition to its corrosion resistance, 1.4507 UNS S32550 also offers excellent mechanical properties, with a high yield strength and good ductility. It can be easily fabricated using standard methods, including welding, cutting, and forming. This makes it a popular material for a wide range of applications, including pressure vessels, heat exchangers, and structural components.
